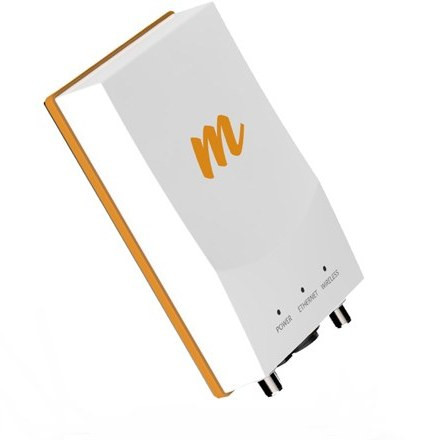

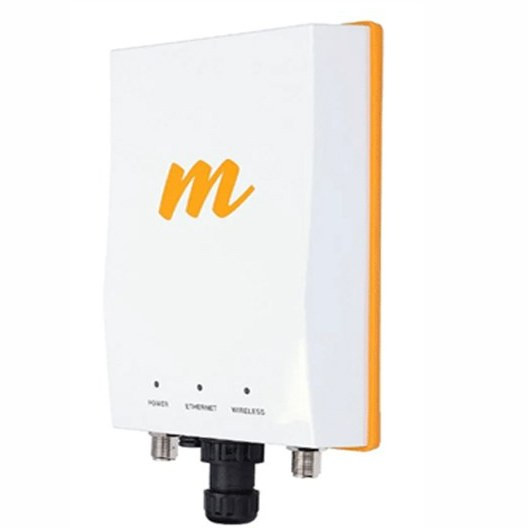

رادیو وایرلس میموسا مدل B5c

مشخصات کلی

brand

MIMOSA

Max Throughput

Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)

Low Latency

< 1 ms in Auto Mode

Wireless Protocols

TDMA, TDMA-FD

MIMO 5 GHz

4×4:4 MIMO OFDM up to 256QAM

Bandwidth

Single or Dual 20/40/80 MHz channels

Frequency Range

4900-6200 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)

Max Output Power

30 dBm (2-stream), 27 dBm (4-stream)

Sensitivity ( MCS 0 )

-87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz

Max power consumption

20W

System Power Method

48 V DC 802.3 at compliant power injectors

System Lightning & ESD Protection

6 kV

PoE Power Supply

Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection

Dimensions

Height: 267 mm (10.5") Width: 158 mm (6.2") Depth: 74 mm (3")

Weight

1.6 kg (3.5 lbs)

Enclosure Characteristics

Outdoor UV stabilized plastic Aluminum mounting panel

Wind Survivability

200 km/h (125 mph)

Wind Loading

9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph)

Mount materials

Dual standard pole straps for 30 mm (1.18") to 90 mm (3.54") OD pipes

Connector Type

Female Type N (x2), intended for use with dual polarization antenna

Outdoor Ingress Protection Rating

IP67

Operating Temperature

-40°C to +55°C (-40°F to 131°F)

Operating humidity

5 to 100% condensing
