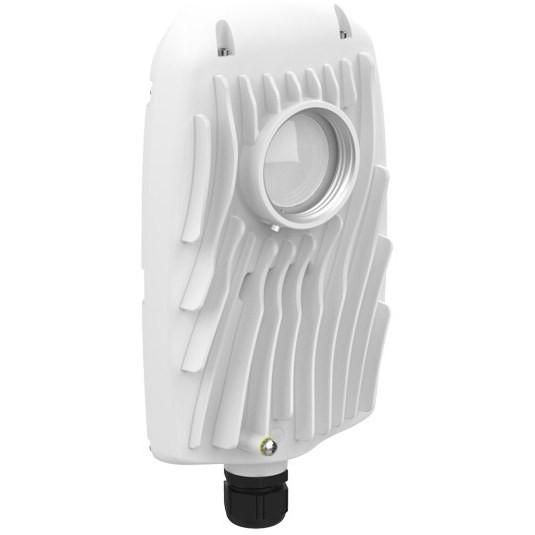

رادیو وایرلس میموسا مدل B5x

مشخصات کلی

brand

MIMOSA

Max Throughput

Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)

Low Latency

<1 ms in auto mode

Wireless Protocols

Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA

MIMO 5 GHz

4×4:4 MIMO OFDM up to 256QAM

Bandwidth

Single or dual 20/40/80 MHz channels; Regulations vary by region

Frequency Range

4.90–6.40 GHz

Max Output Power

30 dBm

Sensitivity ( MCS 0 )

-87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz

Max power consumption

20 W

System Power Method

48 VDC passive isolated PoE injector

System Lightning & ESD Protection

6 kV

PoE Power Supply

50 VDC passive Gigabit PoE injector

Dimensions

241*139*76 mm

Weight

1.4 kg (3.1 lbs) without mount

Enclosure Characteristics

Die-cast aluminum

Wind Survivability

200 km/h (125 mph)

Outdoor Ingress Protection Rating

IP67

Operating Temperature

-40°C to +55°C (-40°F to 131°F)

Operating humidity

5 to 100% condensing

Operating Altitude

4,420 m (14,500’) maximum

Shock & Vibration

ETS 300-019-2-4 class 4M5
